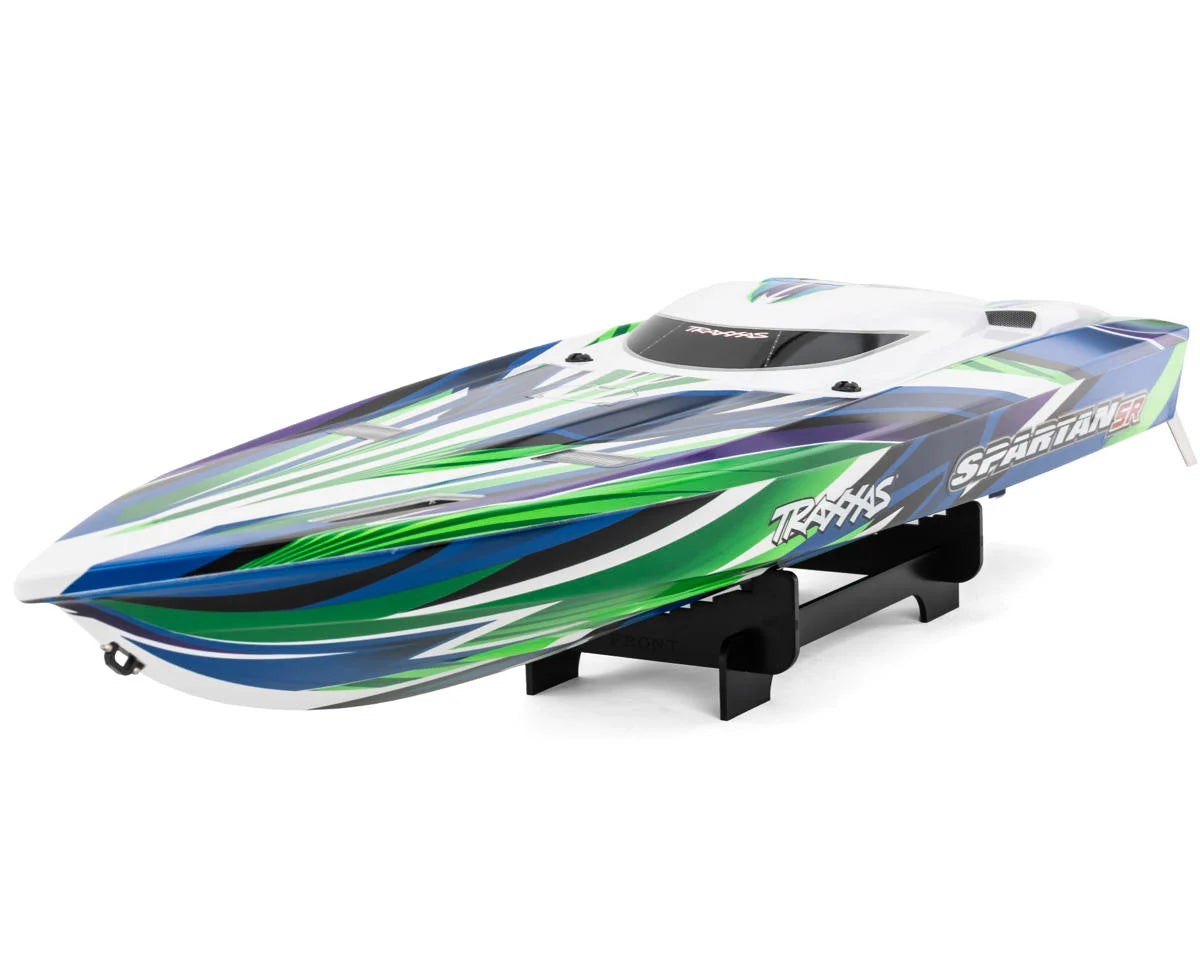

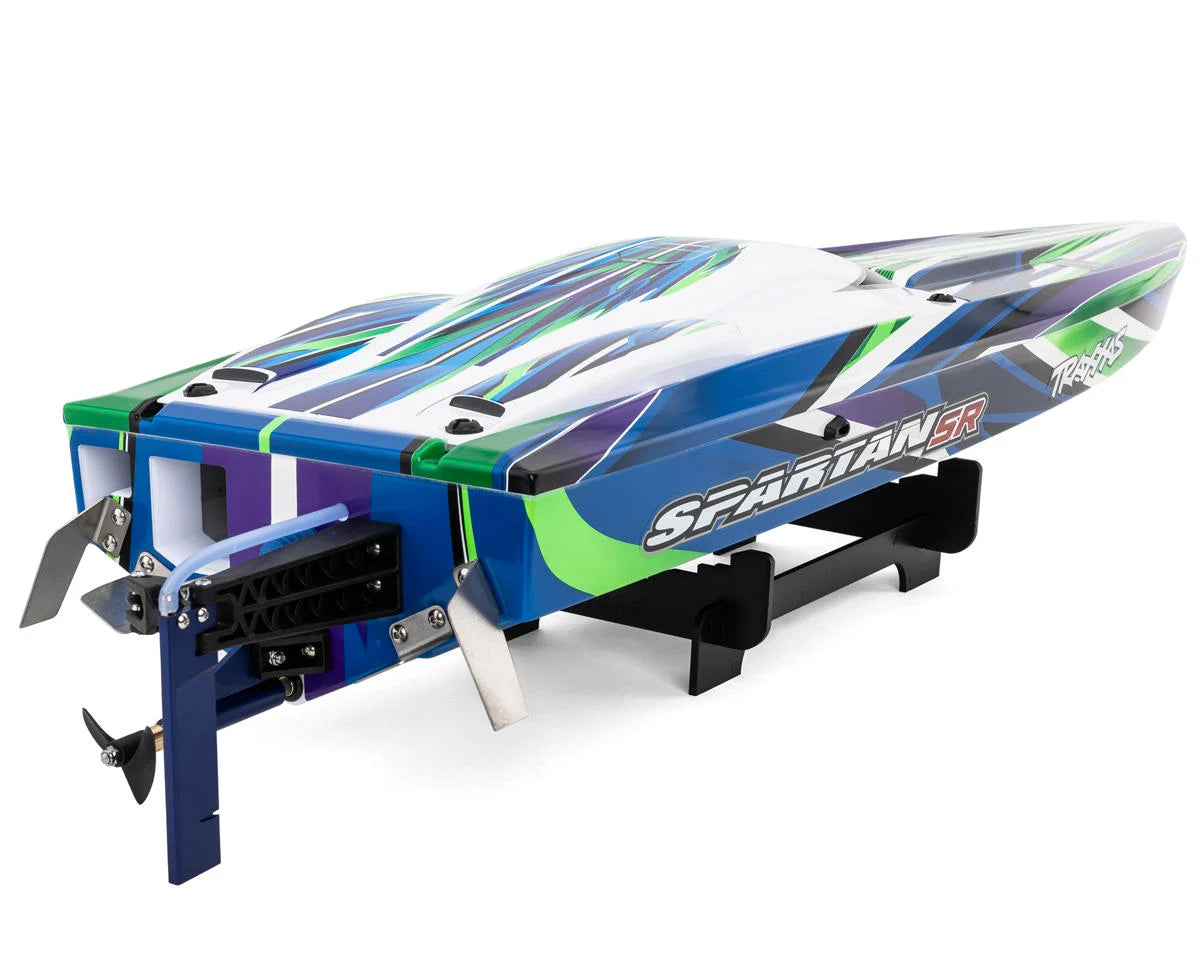

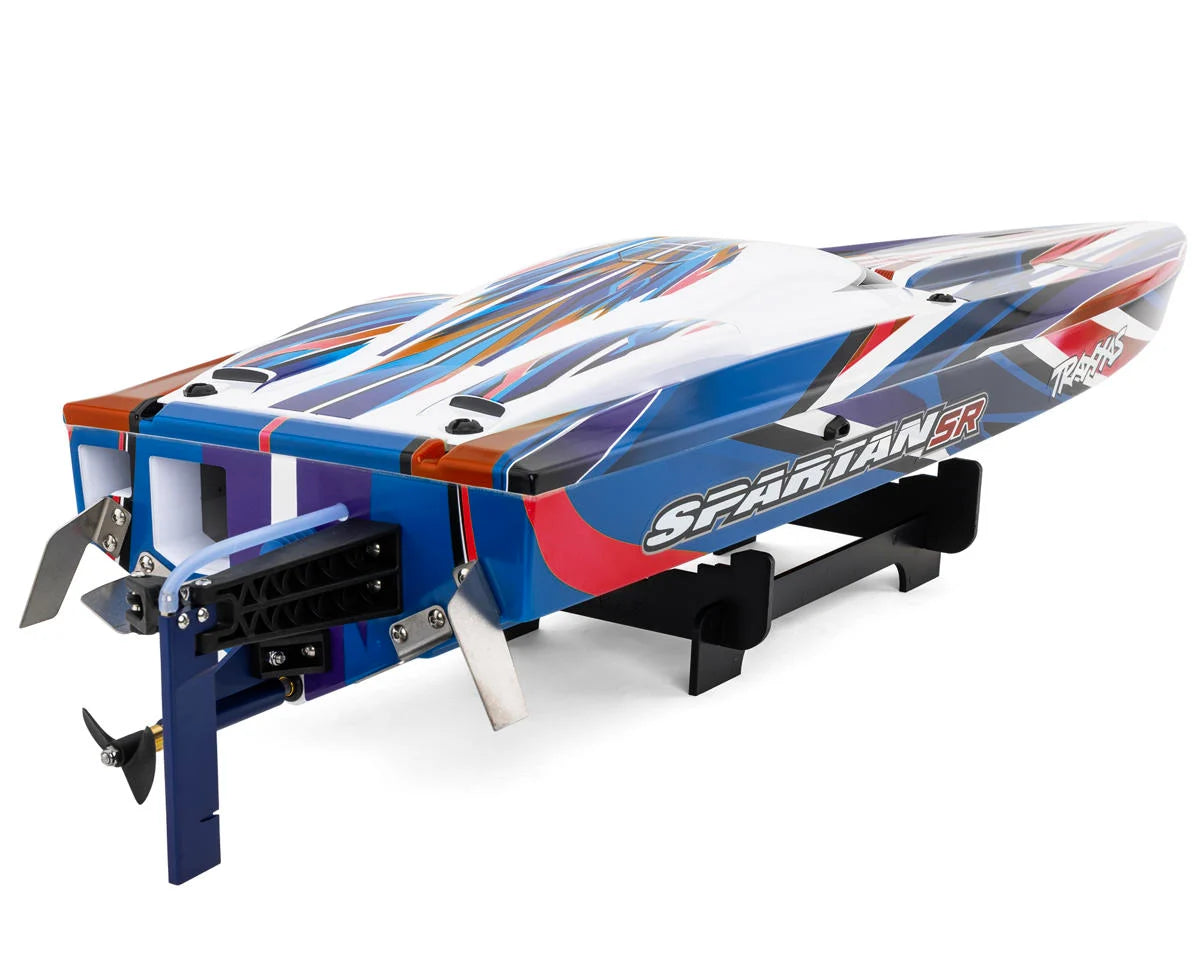

TRAXXAS Spartan SR: 1/10 scale brushless, self-righting, race boat 103076-4

• In Store-Local pick up only
• 36″ Deep-V Hull
  • Made from lightweight vacuum-formed ABS
  • Self-righting flood chamber
  • Pre-applied graphics

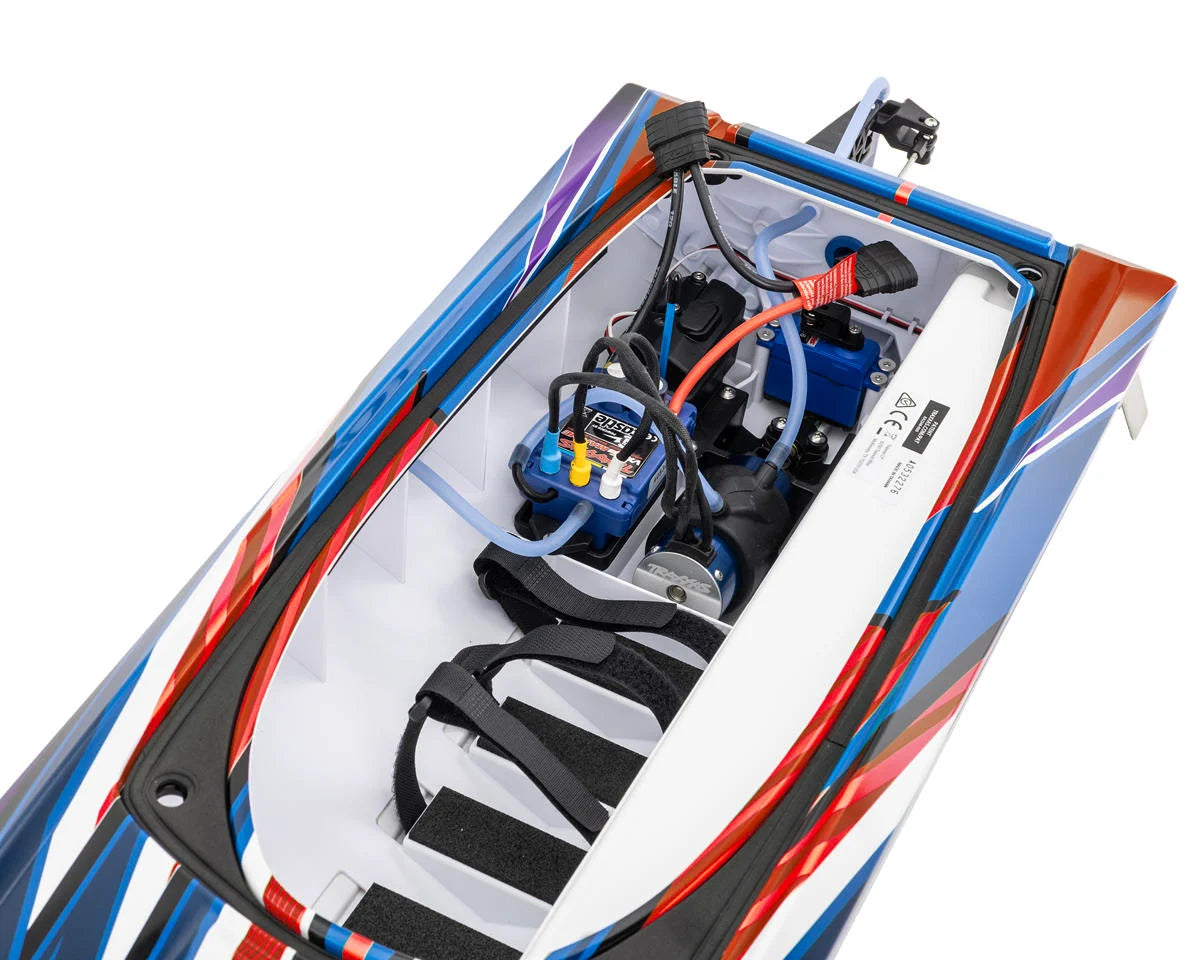

  • Modular electronics tray
  • Large foam bow insert maintains buoyancy
• Rigid Injection-Molded Clipless Hatch
  • Four quick-release hatch nuts with tool
  • Foam seal keeps water out
  • Includes optional wingnuts
• Up to 50 MPH with Dual 3s LiPo Batteries
• TQi^™ 2.4 GHz Transmitter
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable Multi-Function knob
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box
• Traxxas Stability Management (TSM)^®
  • Improves straight line acceleration and high-speed stability
  • Never dulls throttle
  • Adjusts from off to 100% assistance from the transmitter

• VXL-6s Marine Speed Control
  • Water-cooled case
  • Three Programmable Drive Profiles
  • Sport Mode - 100% Forward / 15% Reverse
  • Race Mode - 100% Forward / No Reverse
  • Training Mode^™ - 50% Forward / 15% Reverse (patented)
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 14 cells (16.8 volts)
  • LiPo battery packs: 4-6 cells (14.8 to 22.2 volts)
• Velineon 540XL Marine Brushless Motor
  • Ultra high-temperature sintered Neodymium magnets
  • Efficient, high-speed ball bearings
  • Optimized for power in marine applications
  • 1850 kV
  • 5 mm output shaft
  • Water-cooled jacket

• Extra-Long 218 mm Battery Tray
  • Centralizes battery weight
  • Allows fore and aft battery positioning
  • Accommodates multiple battery configurations
  • Secure hook-and-loop straps
• Drivetrain
  • Heavy duty 4.7 mm diameter flex shaft
  • Quick-release motor collet
  • Blue-anodized aluminum drive strut
  • Low-maintenance bushings
• Steering
  • High-torque waterproof 2056 servo
  • Blue-anodized aluminum rudder with water pickup
• Precision-Cut Stainless Steel Trim Tabs and Turn Fins
• Stainless Steel Hex Hardware Used Throughout

MODEL 103076-4: Spartan SR: 1/10 scale brushless, self-righting, race boat with waterproof electronics. Ready-To-Race® with TQi™ 2.4 GHz 2-channel radio system, VXL-6s™ Marine speed control, Velineon® 540XL Marine brushless motor, and clipless deep-V hull. Requires: batteries and charger.
What’s In The Box:
Spartan SR with VXL-6s Marine ESC and 1850 kV motor
Quick Start Guide
TQi 2.4 GHz radio system
Boat stand
Hatch nut tool
Optional wingnuts
What You’ll Need:
Batteries
Spartan SR requires dual 7-cell NiMH or dual 2s or 3s LiPo batteries. See full list of batteries.

Charger
Traxxas EZ-Peak® Dual 3s (2972) is recommended for easy and fast charging performance.

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
