TRAXXAS BL-2s™ Brushless Power System 3382

The BL-2s^™ brushless power system delivers more speed, faster acceleration, and virtually maintenance-free operation at an affordable price. Drivers experience smooth, effortless power with added punch for tire-shredding burnouts and blazing fast speed. Optimized for 7-cell NiMH and 2s LiPo batteries, the BL-2s delivers all-day fun, battery after battery.

The waterproof BL-2s speed control delivers all the benefits of brushless technology with the safety and convenience features you expect from Traxxas. Built-in low-voltage detection, thermal shutdown protection, and EZ-Set® one button programming make BL-2s reliable and easy to operate.

BL-2s ESC Features:
­
Fully waterproof
Built-in two-stage low voltage detection for lithium polymer (LiPo) batteries
NiMH battery packs 6-7 cells (7.2 - 8.4 V) or 2-cell LiPo battery packs (7.4 V)
Patented Training Mode™ reduces the power output by 50% for new or younger drivers. When they're ready, simply change profiles to unleash full-throttle action.
EZ-Set® one-button setup operates and programs just like other Traxxas speed controls
Three programmable drive profiles:
Sport Mode – Fwd / Brake / Rev
Race Mode – Fwd / Brake
Training Mode™– 50% Fwd / Brake / 50% Rev
Multi-color status LED
Two-stage thermal shutdown protection protects the BL-2s from overheating
Large aluminum heatsink dissipates heat
Built-in auxiliary fan output
Keyed motor connector

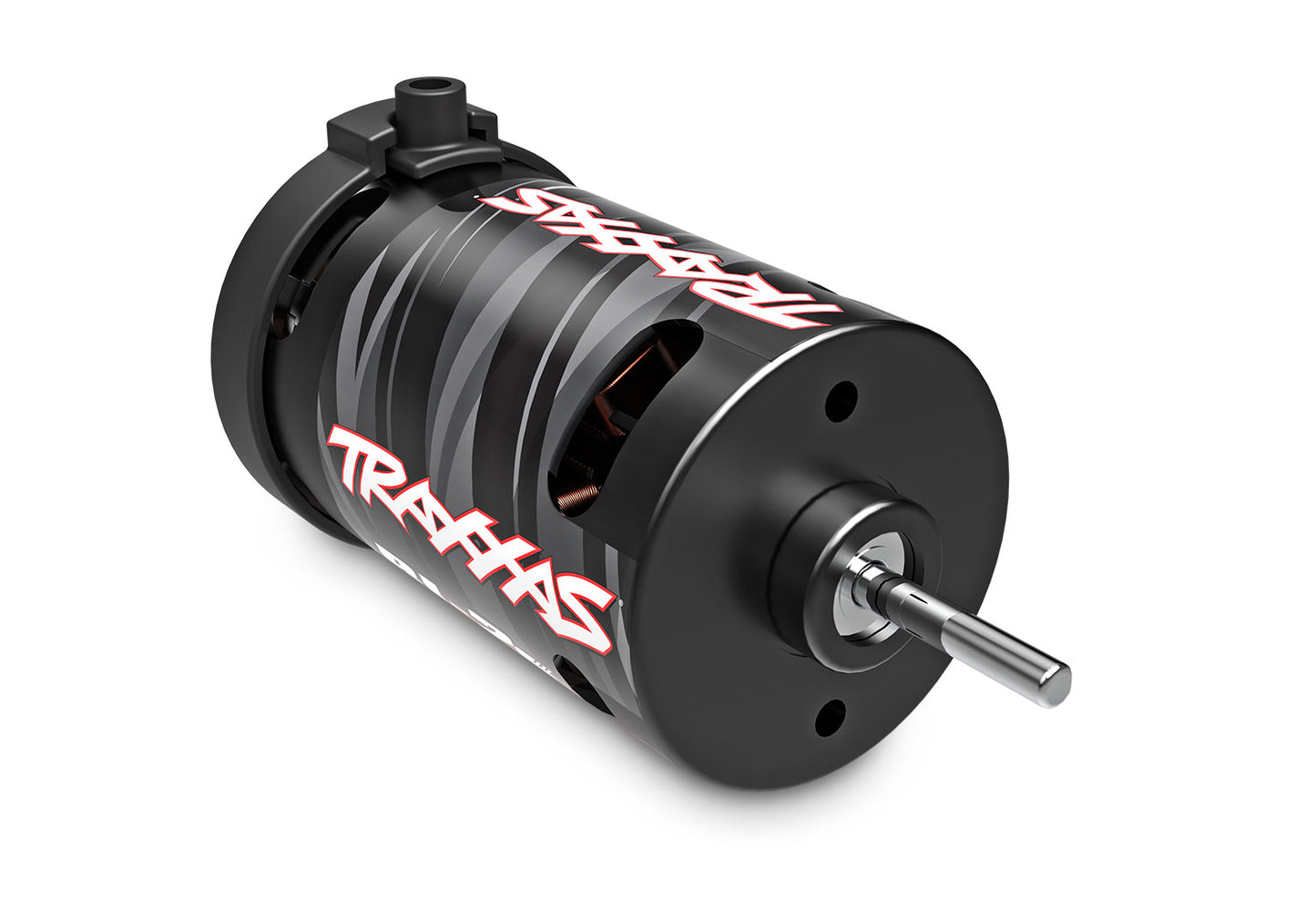

The sensorless BL-2s 3300 kV motor delivers the all-day speed and torque you expect from brushless technology, without the high price tag. With no brushes to wear out, the BL-2s is long-lasting and virtually maintenance free. Low-friction ball bearings and an integrated cooling fan open the door to all-day fun.

BL-2s Brushless Motor Features::
­
Integrated cooling fan
Low-maintenance design
High-speed ball bearings
3300 kV

Integrated Cooling Fan
With no brushes to wear out, the BL-2s brushless motor delivers long-term fun with very low maintenance. An integrated fan pulls cooling air through the motor for all-day running without slowing down.

Quick Connect Motor Plug
The Traxxas Quick Connect Motor Plug delivers free-flowing power from the ESC to the motor. The specially-keyed design aligns the plug in the correct orientation every time.

BL-2s WATERPROOF ESC SPECIFICATIONS

Input Voltage:   NiMH 6-7 cells (7.2 to 8.4 volts); LiPo 2 cell (7.4 volts) Case Size:   39 mm W x 59 mm D x 31 mm H Weight:   87 grams Reverse Delay:   Yes, with lockout BEC Voltage:   6.0 volts BEC Current:   3 amps Input Wire:   14 gauge Motor Connectors:   Quick Connect Motor Plug Input Harness Wire:   26 gauge Low Voltage Detection:   2-stage indicators, switchable (on or off) Thermal Protection:   2-Stage thermal shutdown Profile selection:   Sport Mode:     100% Fwd, 100% Brake, 100% Rev Race Mode:     100% Fwd, 100% Brake, No Rev Training Mode:*     50% Fwd, 100% Brake, 50% Rev Single-Button Setup:   Traxxas EZ-Set® Battery Input Connector :   Traxxas High-Current Connector Motor Types:   Brushless Accessory Port:   Auxiliary fan     *Patented



BL-2s BRUSHLESS MOTOR SPECIFICATIONS

Type:   Sensorless brushless kV:   3300 kV Wire Size:   16 gauge Cooling:   Integrated cooling fan Motor Length:   57 mm Can Diameter:   37 mm Weight:   201 grams
