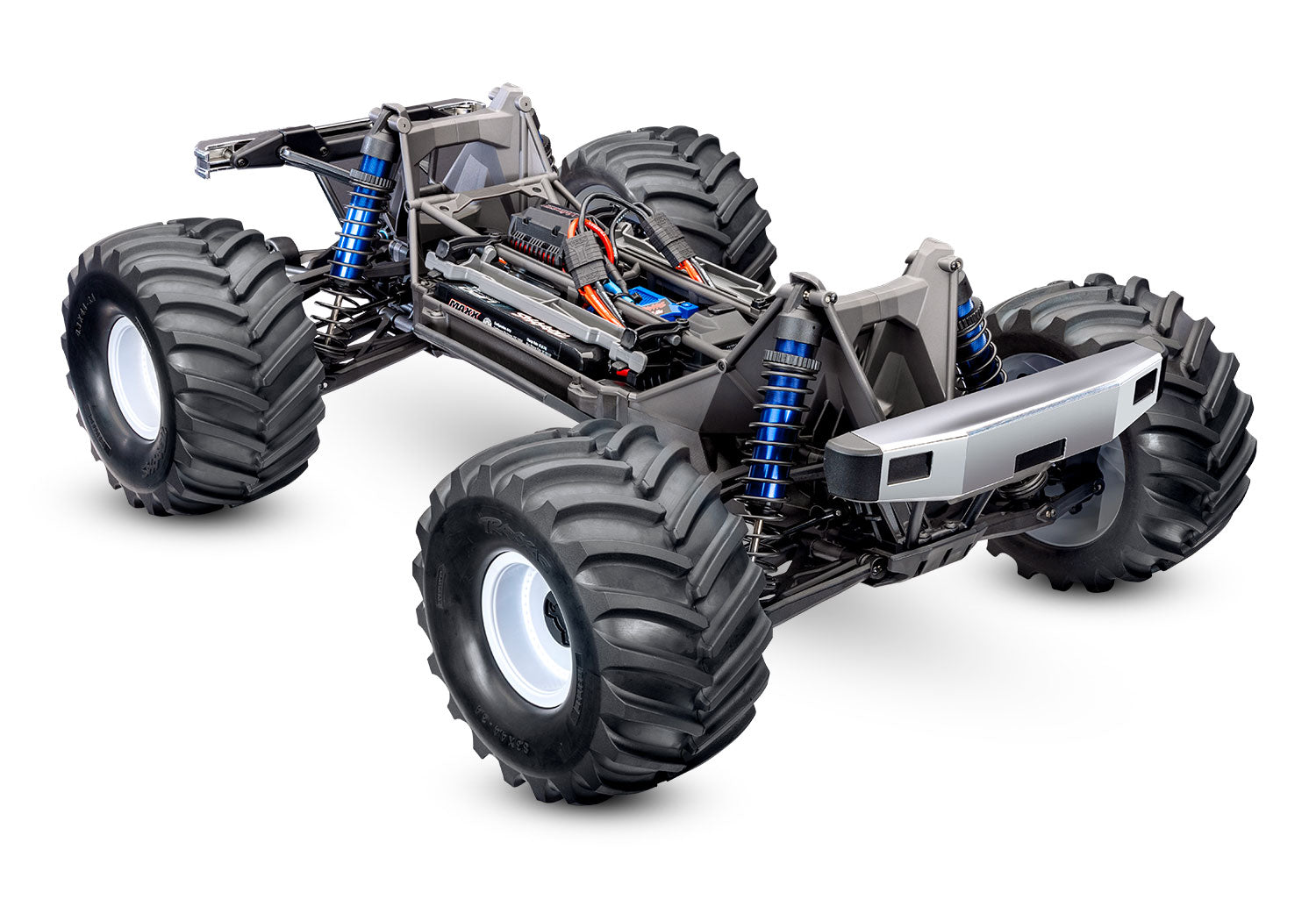

Traxxas X-Maxx MT Chassis, 77036-4

BUY NOW PICK UP OCTOBER 10TH, LOCAL PICK UP ONLY. NO SHIPPING

The new X-Monster combines the legendary power and durability of X-Maxx with even more strength, larger size, and a new series of replica monster truck bodies. New belted chevron-pattern monster truck tires deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks of a real monster truck. Choose your favorite Ford or Chevy body (sold separately) and unleash 30+ volts of extreme 8s power!

Traxxas set a new standard for RC monster trucks with the release of the original X-Maxx. Since then, X-Maxx has only grown stronger and more powerful with each generation. The new X-Monster incorporates the latest and greatest X-Truck® upgrades to create the strongest X-Maxx chassis and driveline ever offered.

All new chevron-pattern monster truck tires give the X-Monster a livelier feel with improved grip and greater control. The huge 8.6” tires are made from an ultra-soft compound for incredible traction with internal belting to reduce ballooning. Replica white monster truck wheels feature military-style hubs for an authentic scale appearance.

Pair the X-Maxx MT Chassis with a replica Ford® F-150®, Chevrolet® C/K, or BIGFOOT® No. 8 body (sold separately). Each body features a full-length reinforced body cage for maximum rigidity. Already have a custom-painted X-Maxx body? The X-Maxx MT Chassis also accepts existing X-Maxx clipless bodies!

FEATURES:

• Choose from Several Clipless Monster Truck Bodies (sold separately)
• Quick one-hand installation and removal
• Pivoting rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection
• VXL-8s™ Waterproof Electronic Speed Control
• 8s LiPo compatible
• Built-in cooling fan
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights
• Velineon® 1200XL Brushless Motor
• 4-pole 1275 Kv
• 5 mm output shaft
• Aluminum slip-on heat sink
• Dual motor cooling fans
• 50+ mph with Two 4s LiPo Batteries and Included Optional Pinion Gear
• Traxxas Stability Management® (TSM)
• Helps prevents spinouts and loss of control
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz High Output Radio System
• Traxxas Link™ enabled
• 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity
• BEC Voltage and Motor Temperature Sensor installed
• 8s Driveline
• Machined, hardened steel pinion and spur gear
• Full-time shaft-driven 4-wheel drive
• Heavy-duty steel CV driveshafts with laser etching
• Beefed-up steel differential output cups
• Splined aluminum center driveshaft
• Machined aluminum stub axles
• Torque-Biasing Center Drive™ absorbs shocks and distributes power to all four wheels
• 24 mm splined wheel hexes
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Fixed Motor Mounting System
• Rigid aluminum motor mounts
• Preset gear mesh adjustments
• No manual adjustments required
• Motor retention separate from gear mesh
• Heavy-Duty Modular Composite Chassis
• Interlocking front and rear bulkheads
• Motor mounts to rear bulkhead to eliminate gear crunching flex
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit
• Snap-Lock Battery Retention System
• No body clips or hook and loop straps
• Battery hold-downs pivot for easy access
• Adjustable for battery size
• More secure than conventional retention systems
• Integrated into chassis top brace for improved battery tray and chassis stiffness
• Bumpers & Skid Plates
• Front energy absorbing rubber impact cushion
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Steering
  • 450 oz-in torque
  • Aluminum cooling fins
• 2085XL high-output metal-gear steering servo
• Fully-supported case mounting
• Double-shear, bearing supported servo horn
• Suspension
• Heavy-duty suspension arms with double-shear connections
• High strength steel suspension pins used throughout
• Captured outer lower suspension pins with locknuts
• C-hub and steering block geometry maximizes steering angle
• Adjustable roll center
• Steel upper and lower tie bars
• Full contact sealed bearings used in exposed locations
• Aluminum GTX™ Shocks
• Machined aluminum threaded body
• Extra-large bore and capacity
• 5.2 mm damper shaft
• Lower seal cartridge includes integrated wiper seal combination
• Adjustable upper spring retainer
• Plastic shock caps with pivot balls
• Fixed shock locations
• Lower spring perches bolted on
• Wheels & Tires
  • Replica military-style axle hubs
  • Super-soft rubber compound for exceptional grip
  • Internal belting virtually eliminates ballooning
• Dual-profile white monster truck wheels
• Huge 8.6" belted chevron-pattern monster truck tires

SPECIFICATIONS:

• Model Name: X-Maxx MT Chassis
• Type: Monster Truck
• Speed: 50+ mph with two 4s LiPo batteries and optional speed gear
• Scale: X-Truck
• Weight: 19.1 pounds (8.66 kg)
• Length: 30.67 inches (779 mm)
• Width: 21.3 inches (540 mm)
• Front Track: 21.3 inches (540 mm)
• Height: 13.99 inches (355 mm)
• Wheelbase: 18.92 inches (480 mm)
• Center Ground Clearance: 4.2 inches (107 mm)
• Drive System: Shaft-driven 4WD
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: 1.0 metric pitch
• Servo: 2085XL metal gear ultra-high-torque waterproof
• Radio System: TQi™ 2.4 GHz 2-channel transmitter with wireless module
• Battery Compartment Specs: 197 mm X 52 mm X 44 mm
• MOTOR SPECS:
  • Motor Name: Velineon 1200XL
  • Type: 1275 Kv sensorless brushless
  • Weight: 23.44 ounces (665 g)
  • Length: 4.32 inches (110 mm)
  • Diameter: 1.88 inches (48 mm)
  • Shaft Size: 5 mm
  • Connector Type: 6.5 mm bullet connectors
• ESC SPECS:
  • ESC Name: Velineon VXL-8s
  • Type: Brushless
  • Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
  • Weight: 7.60 ounces (215.5 g)
  • Motor Connectors: 6.5 mm bullet connectors
  • Battery Connectors: Traxxas High-Current Connectors
  • Power Wire: 10 gauge Maxx® Cable

INCLUDES:

• X-Maxx MT Chassis with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Optional high speed pinion gear
• TQi 2.4 GHz radio system
• High quality maintenance tools

Needed to complete:

• Body: Select your X-Maxx MT body from one of several available options
• Batteries: X-Maxx MT requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance (part 2890X)
• Charger: EZ Peak Live Dual 4s LiPo Charger with iD®
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter

Note: The X-Maxx MT Chassis does not include a body. Accessory X-Maxx MT assembled bodies are available separately.
