Quickrun 16BL30 G2 ESC & 2435SL 4500KV G3 Motor Combo 38030002 LATRAX UPGRADE

(1) HOBBYWING QUICRUN 16BL30 G2 ESC package
(1) HOBBYWING QUICRUN 2435SL motor package

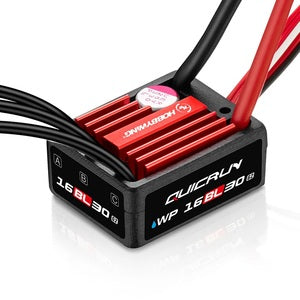

ESC Features:
Excellent performance, specially designed for 1/16 & 1/18 On-road & Off-Road. Designed to pair with Quicrun 2030/2435 G2 Motor
The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
Compared to the G1 ESC, the BEC's continuous current has been upgraded from 1A to 2A, with a peak current of up to 4A. The output voltage can be switched between 6V and 7.4V. Easily powering high-torque and high voltage servos. This provides faster response and more precise control.
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.
The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.
The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.
Motor Features:
High Efficiency means more POWER while keeping TEMP low!
4 pole rotor design for stronger torque, the motor has strong explosive force.
Compared with the previous generation of motors, the output power and efficiency are increased by more than 4%, and the motor temperature is effectively reduced under the same load.
0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
Motor Specifications:
LiPo Cells: 2S
No-load Current (A): 2.1A / 4500kv
Dia / Length: D=24mm (0.94") L=36mm (1.42")
Shaft Dia / Length: D=2mm (0.08") L=12mm (0.47")
Bearing size: D8*D3*T4
Pole: 4
Weight: 61.2g
Applications: 1/16 & 1/18 On-road, Off-road
