EcoPower ECP-100 Standard Ball Bearing Servo, specifically for light duty 1/10 vehicles or RC airplanes equipped with standard size servos

EcoPower ECP-100 Standard Ball Bearing Servo, specifically for light duty 1/10 vehicles or RC airplanes equipped with standard size servos

$13.99 USD
$13.99 USD
Sale Sold out
Shipping calculated at checkout.

Eco Power

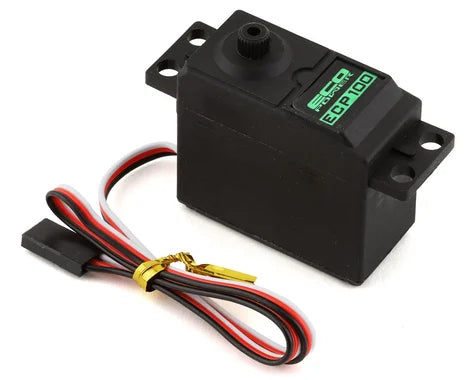

 The EcoPower 100 Standard Ball Bearing Servo is an excellent option when you need an affordable, light duty replacement servo. The EcoPower 100 servo has been designed specifically for light duty 1/10 vehicles or RC airplanes equipped with standard size servos. The servo features smooth ball bearing control, durable nylon gears and a long 265mm servo lead. Package includes one servo, one servo mount set, five molded servo horns and hardware.

NOTE: This servo is not designed for use with fuel-powered surface or air use.

Features:
  • Affordable option for light duty surface and air applications
  • 89 oz-in of torque @ 6.0V, and .18 transit speed
  • Digital circuitry
  • Cored motor
  • Durable nylon gears
  • 265mm servo lead
  • Includes molded star, 4 way, dual, single and round arm type servo horns and mounting hardware
  • 1 Year warranty against manufacturer defects*
*NOTE: Warranty does not cover stripped gears or damage caused by abuse.







Servo Model
 100
Recommended Application Light Duty Surface & Air
Waterproof
 No
Operating Voltage 4.8V - 6.0V
Operating Speed @ 4.8V 0.2/60° sec
Operating Speed @ 6.0V 0.18/60° sec
Dynamic Torque @ 4.8V 62 oz-in (4.4 kg-cm)
Dynamic Torque @ 6.0V 89 oz-in (6.4 kg-cm)
Motor Type Cored DC
Output Shaft 25 Tooth
Gears Nylon
Weight 36g
Dimensions 40.5x20x42.25mm (LxWxH)
