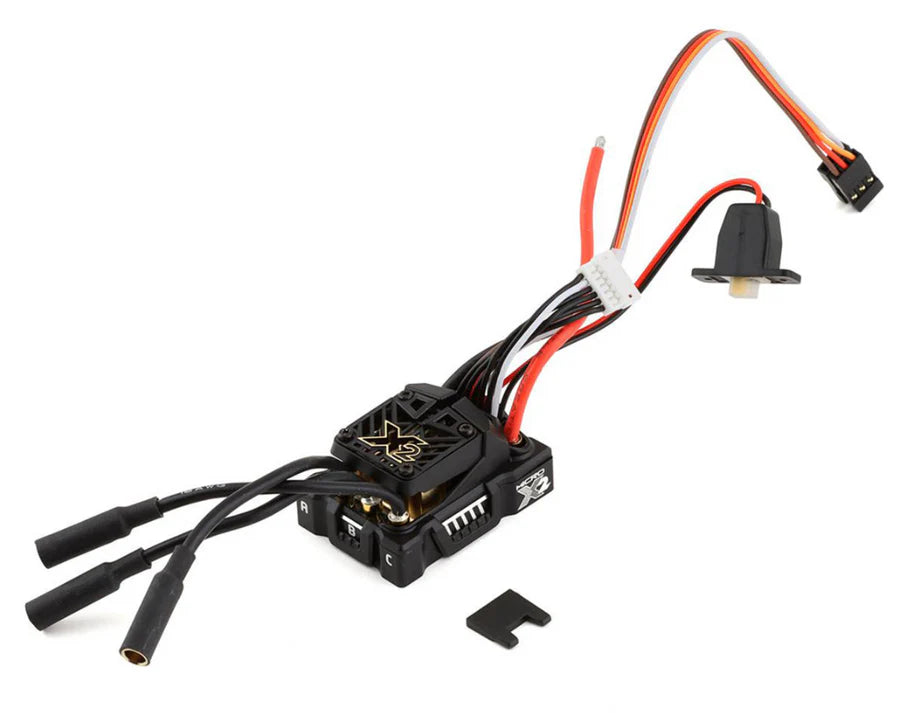

Castle Creations Mamba 010-0171-00 Micro X2 Crawler BEC external, 010-0171-00

This is Castle Creations Mamba Micro X2 16.8V 4mm Waterproof Sensored ESC For 1/10 1/14 RC Crawler. The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.

This ESC is ideal for the weight conscious builder or where space is limited, used in low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. Recommended motors include Castle's "Slate" crawler motors (combos available) and Holmes Hobbies Puller Pro 540 "Stubby" (≤ 2700kv)

Due to supply chain disruptions, Castle was unable to manufacture the Micro X2. The parts in question are integral to the onboard 2-amp BEC. In an effort to provide the Micro X2 for sale again, we have removed the internal BEC and are including our external 10-amp CC BEC (a $24 value) with every Micro X2 purchase.

This upgraded BEC has a wider range of BEC voltages and much higher current capacity. The retail price for the ESC and combos has not changed.

Feature:

• For:  1/14 scale RC vehicles weighing up to 3lbs and 1/10 scale low speed crawler vehicles up to 9lbs.

• Color: Black

• Input Voltage range 2S-4S

• Waterproof design, Included CC BEC is not Waterproof

• Sensored Motor capable

• Convenient transmitter programming for six common adjustable settings.

• Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)

• Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)

• Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.

• Audible Alerts that will notify you of possible issues with calibrations and error conditions.

Specification:

• Input Voltage Range: 2S-4S LiPo (16.8V Max)

• BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.

• Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.

• Brake: Proportional

• Reversible: Yes, but may be disabled

• On/Off Switch: Yes, waterproof

• Cooling Fan: Not included

• Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")

• Weight (with wires): 1.66 oz / 47 grams

• Connectors: 4.0 mm bullets

Include:

• Castle Creations Mamba Micro X2 16.8V 4mm Waterproof Sensored ESC For 1/10 1/14 RC Crawler  (1 pc)
