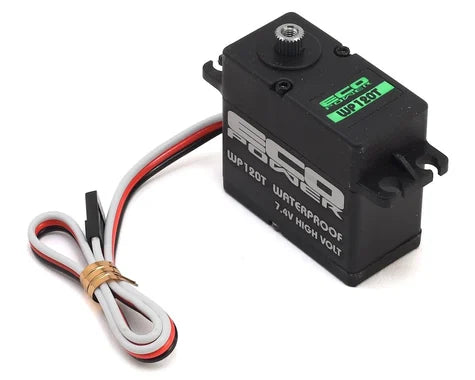

EcoPower WP120T Coreless Waterproof High Torque Metal Gear Digital Servo ECP-120T

EcoPower WP120T Coreless Waterproof High Torque Metal Gear Digital Servo ECP-120T

Regular price $69.99 USD
Regular price Sale price $69.99 USD
Sale Sold out
Shipping calculated at checkout.

Eco power

 The EcoPower WP120T Coreless Waterproof "High Torque" Metal Gear Digital Servo is a great choice if you are looking for an affordable, waterproof, high voltage upgrade. The WP120T makes 337 oz-in of torque and .11 transit speed at 6.0V. But when you crank the voltage up to 7.4V, the WP120T delivers 400 oz-in and .09 speed, making it an excellent option for scale crawlers, 1/10 monster trucks, 1/10 2WD and 4WD buggies. Plus, its a great option for boats, and other surface applications that can benefit from a high torque, high voltage, waterproof servo.

Features:

  • Affordable option for 1/10 monster truck, 1/10 2WD and 4WD buggies, trucks, boats and more!
  • Waterproof up to 1 meter
  • 337 oz-in of torque and .11 transit speed @ 6.0V
  • 400 oz-in of torque and .09 transit speed @ 7.4V
  • Digital circuitry
  • Coreless motor
  • Metal gears
  • Lightweight plastic upper and lower case w/black anodized aluminum center case
  • Dual ball bearings
  • 220mm servo lead
  • Includes plastic star, 4 way, dual, single and round type servo horns and mounting hardware
  • 1 Year warranty against manufacturer defects*
*NOTE: Warranty does not cover stripped gears or damage caused by abuse.







Servo Model
WP120T
Recommended Application 1/10 Scale Surface
Waterproof
Yes
Operating Voltage 4.8 - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.11/60° sec
Operating Speed @ 7.4V 0.09/60° sec
Dynamic Torque @ 6.0V 337 oz-in (24.4 kg-cm)
Dynamic Torque @ 7.4V 400 oz-in (28.8 kg-cm)
Motor Type Coreless
Output Shaft 25 Tooth
Gears Full Metal
Weight 53g
Pulse/Frequency 1520?s / 333hz
